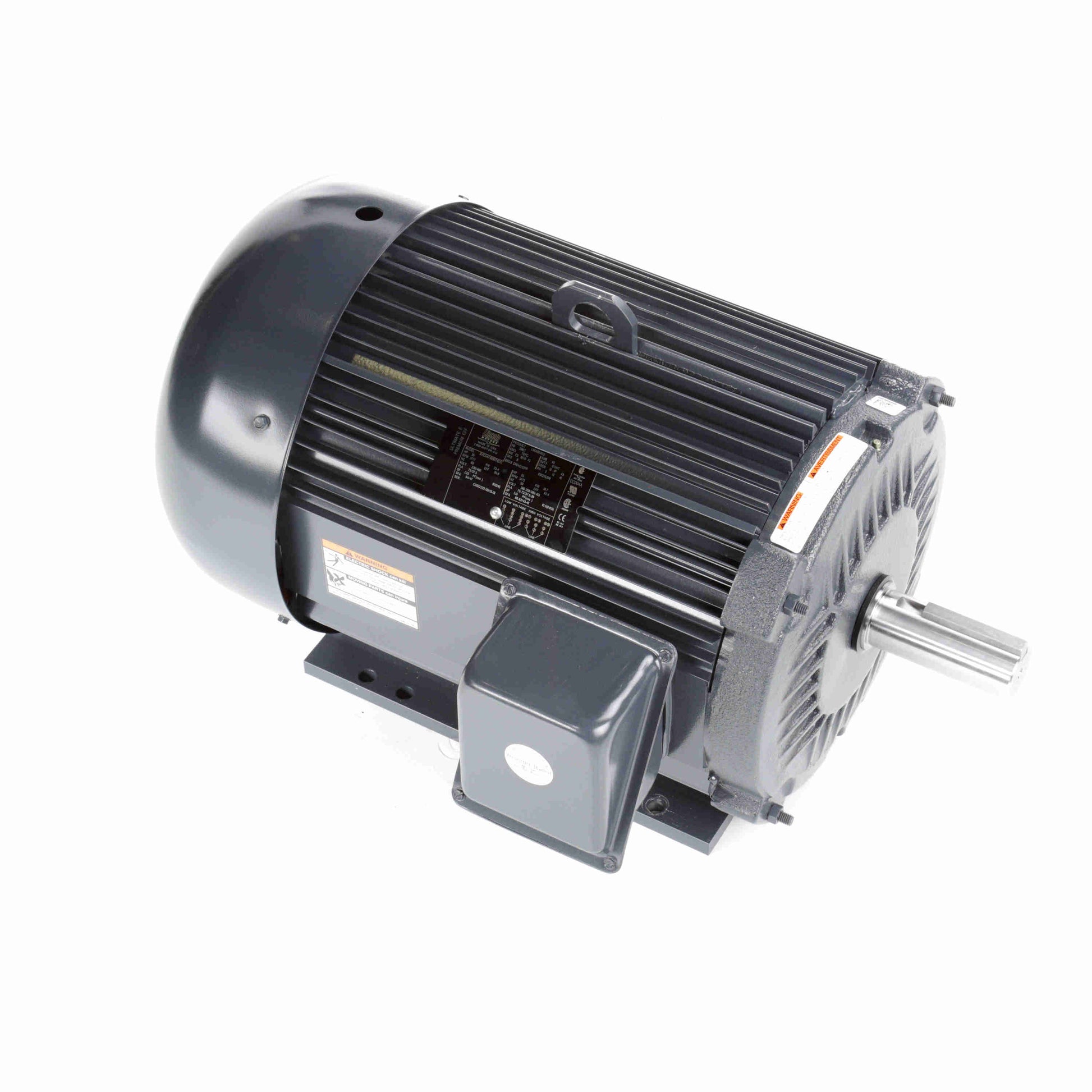

Leeson Electric LM16767, 20 HP, 1800 RPM, 256TC FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, General Purpose

LM16767, 20 HP, 1800 RPM, 256TC FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, General Purpose

Engineering Data

Output HP:20 Hp
Output KW:14.9 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:48.0/24.1 A
Speed:1775 rpm
Service Factor:1.25
Phase:3
Efficiency:93 %
Power Factor:84
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:256TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:309
Opp Drive End Bearing Size:208
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:.474 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Aluminum
Shaft Type:T
Overall Length:25.75 in
Frame Length:13.75 in
Shaft Diameter:1.625 in
Shaft Extension:4 in
Assembly/Box Mounting:F1/F2 CAPABLE
