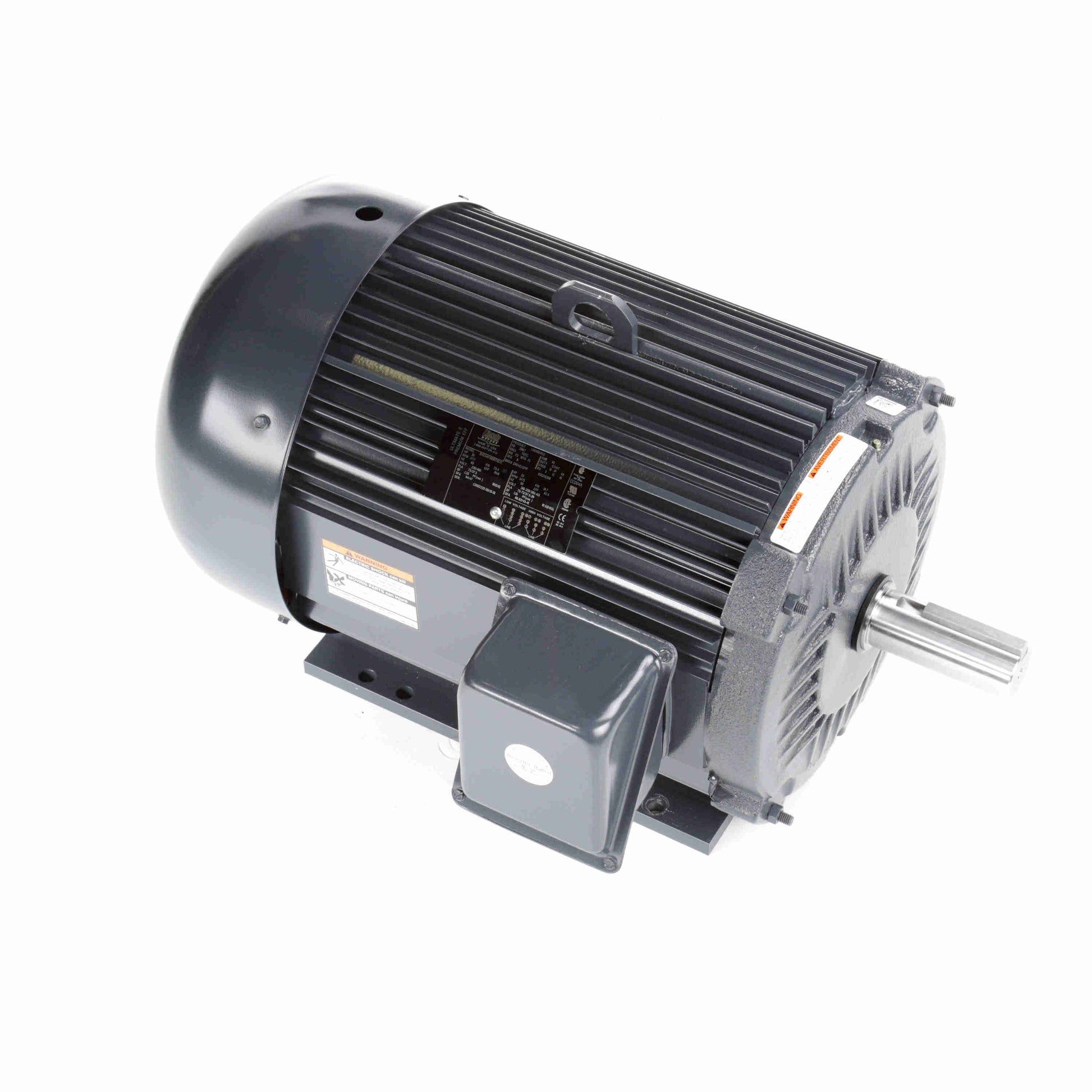

Leeson Electric LM16769, 20 HP, 1200 RPM, 286TC FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, General Purpose

LM16769, 20 HP, 1200 RPM, 286TC FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, General Purpose

Engineering Data

Output HP:20 Hp
Output KW:14.9 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:61.0/30.5 A
Speed:1182 rpm
Service Factor:1.15
Phase:3
Efficiency:91.7 %
Power Factor:66.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:F
Frame:286TC
nclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:312
Opp Drive End Bearing Size:209
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Wye Start Delta Run
Poles:6
Rotation:Reversible
Resistance Main:.3499 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Aluminum
Shaft Type:T
Overall Length:28.01 in
Frame Length:15.25 in
Shaft Diameter:1.875 in
Shaft Extension:4.38 in
Assembly/Box Mounting:F1/F2 CAPABLE
