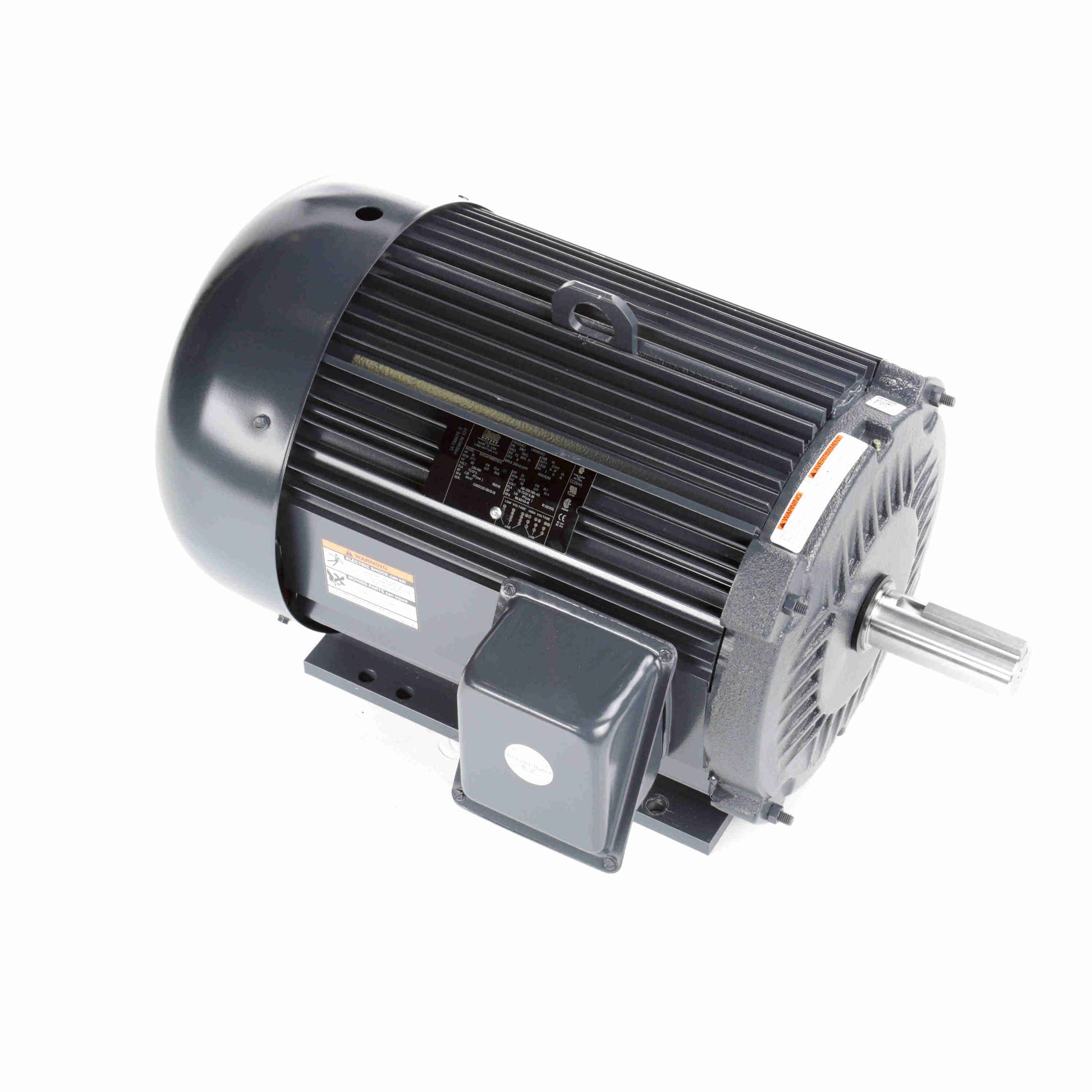

Leeson Electric LM16772, 25 HP, 1800 RPM, 284TC FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, General Purpose

LM16772, 25 HP, 1800 RPM, 284TC FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, General Purpose

Engineering Data

Output HP:25 Hp
Output KW:18.7 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:64.0/32.0 A
Speed:1777 rpm
Service Factor:1.25
Phase:3
Efficiency:93.6 %
Power Factor:79
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:284TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6312
Opp Drive End Bearing Size:6209
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Wye Start Delta Run
Poles:4
Rotation:Reversible
Resistance Main:.286 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Aluminum
Shaft Type:T
Overall Length:26.51 in
Frame Length:13.75 in
Shaft Diameter:1.875 in
Shaft Extension:4.62 in
Assembly/Box Mounting:F1/F2 CAPABLE
