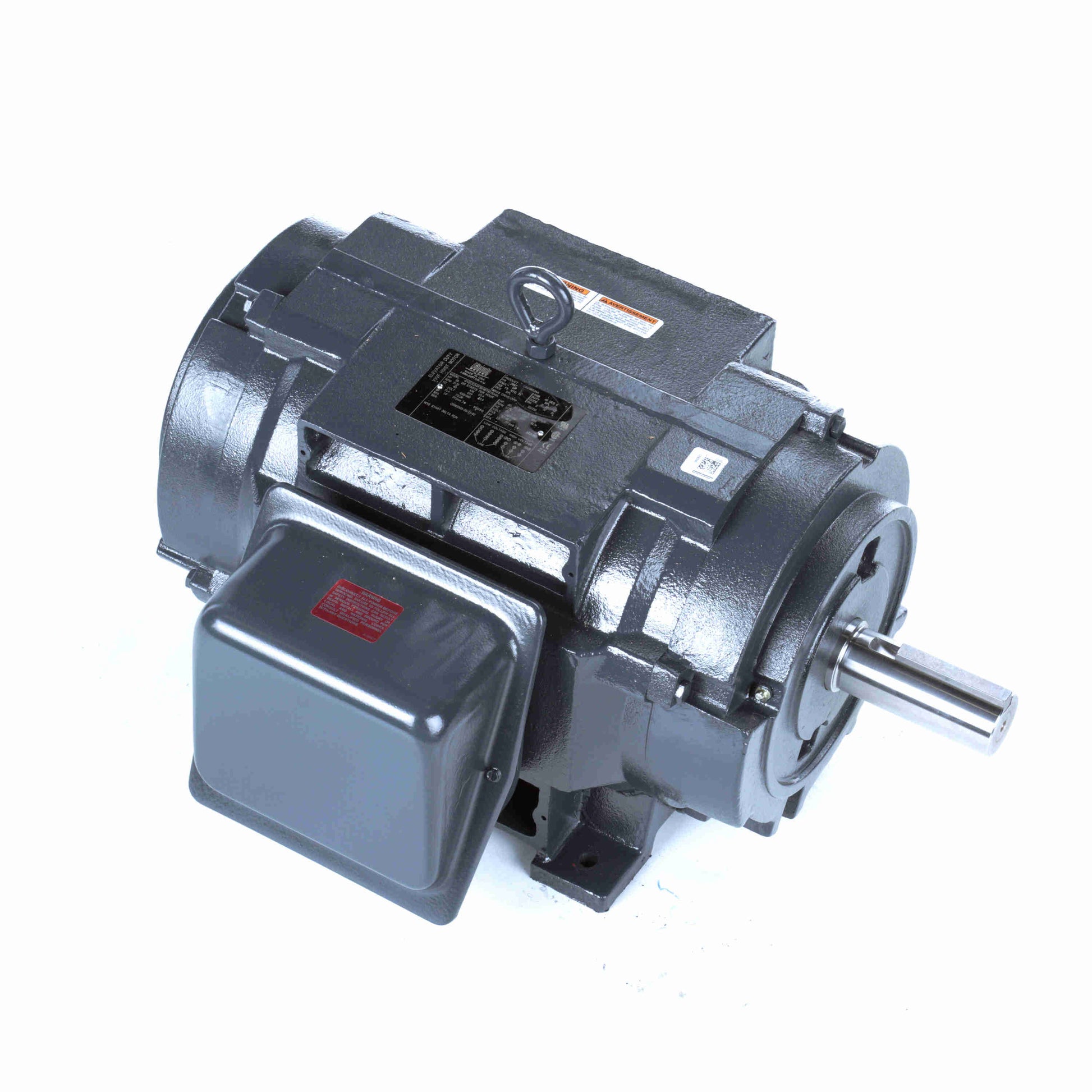

Leeson Electric LM29850, 25 HP, 1800 RPM, 284T FR, 200 Vac, 3 PH, DP, Rigid Base, Elevator Duty Motor,

LM29850, 25 HP, 1800 RPM, 284T FR, 200 Vac, 3 PH, DP, Rigid Base, Elevator Duty Motor,

Engineering Data

Output HP:25 Hp
Output KW:18.7 kW
Frequency:60 Hz
Voltage:200 V
Current:70.0 A
Speed:1765 rpm
Service Factor:1
Phase:3
Efficiency:91.7 %
Power Factor:84
Duty:120/80 Starts/Hour
Insulation Class:F
Design Code:INV
KVA Code:F
Frame:284T
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:311
Opp Drive End Bearing Size:210
UL:Recognized
CSA:Y
CE:YIP Code:12
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Wye Start Delta Run
Poles:4
Rotation:Reversible
Resistance Main:.399 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:T
Overall Length:23.49 in
Frame Length:12.75 in
Shaft Diameter:1.875 in
Shaft Extension:4.62 in
Assembly/Box Mounting:F1/F2 CAPABLE
