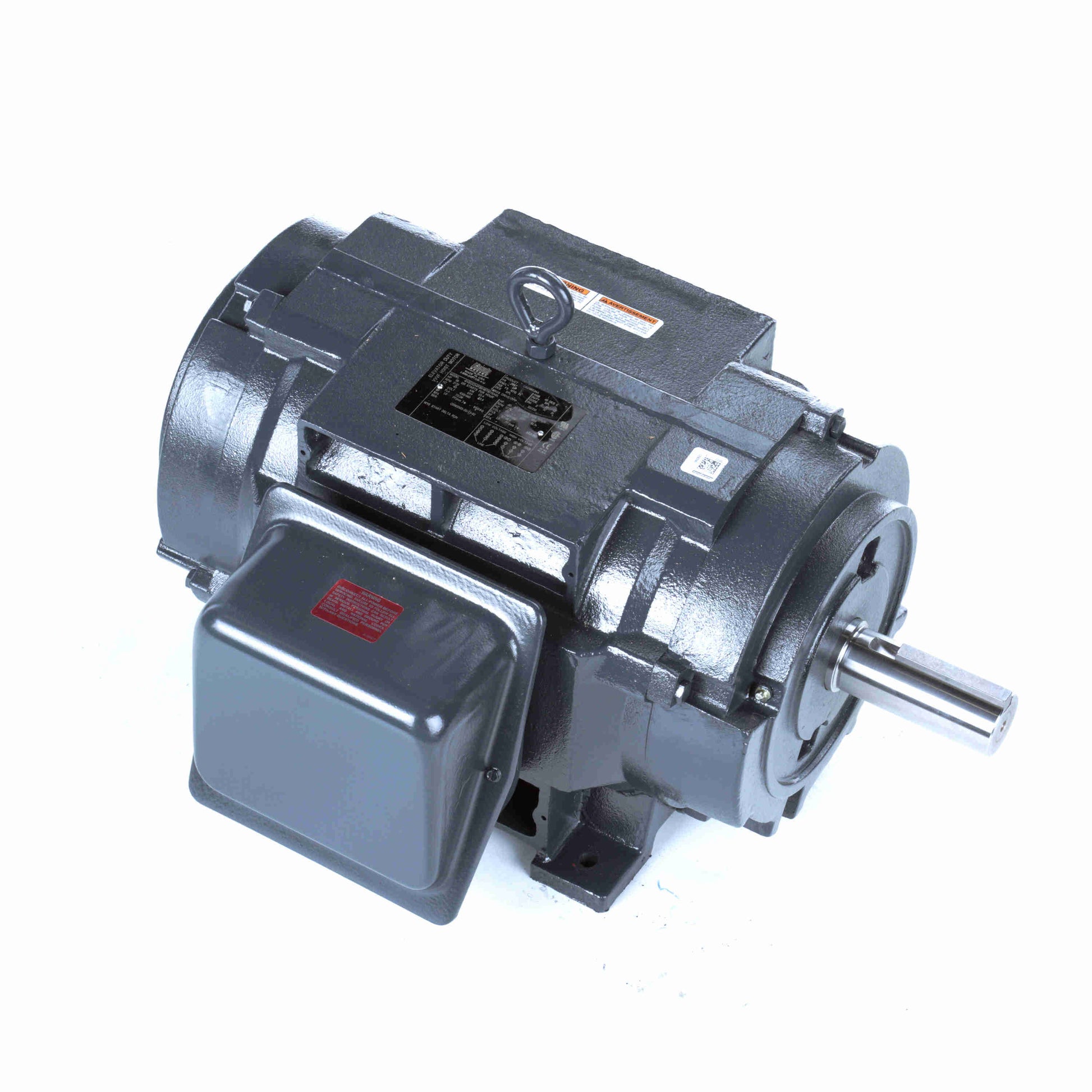

Leeson Electric LM29852, 30 HP, 1800 RPM, 286T FR, DP, 200 Vac, 3 PH, DP, Rigid Base, Elevator Duty Motor,

LM29852, 30 HP, 1800 RPM, 286T FR, DP, 200 Vac, 3 PH, DP, Rigid Base, Elevator Duty Motor,

Engineering Data

Output HP:30 Hp
Output KW:22.4 kW
Frequency:60 Hz
Voltage:200 V
Current:83.0 A
Speed:1770 rpm
Service Factor:1
Phase:3
Efficiency:92.4 %
Power Factor:84
Duty:120/80 Starts/Hour
Insulation Class:F
Design Code:INV
KVA Code:D
Frame:286T
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:311
Opp Drive End Bearing Size:210
UL:Recognized
CSA:Y
CE:Y
IP Code:12
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Wye Start Delta Run
Poles:4
Rotation:Reversible
Resistance Main:.295 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:T
Overall Length:24.99 in
Frame Length:14.25 in
Shaft Diameter:1.875 in
Shaft Extension:4.63 in
Assembly/Box Mounting:F1/F2 CAPABLE
