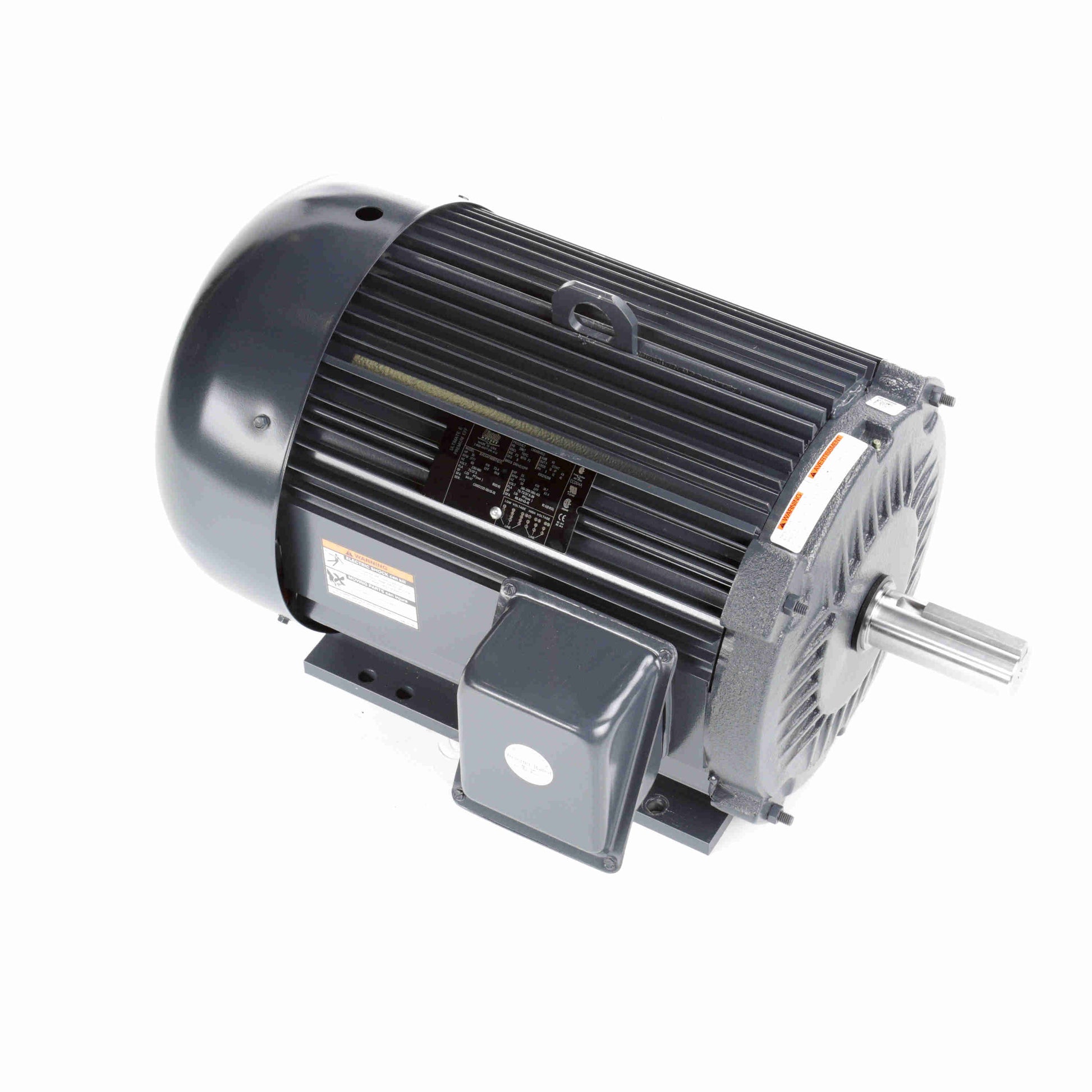

LM33571, 5 HP, 3500 RPM, 184TC FR, 230/460 Vac, TEFC, 3 PH, Rigid Base, General Purpose Motor.

**This motor has been replaced by Model# GT1212A** LM33571, 5 HP, 3500 RPM, 184TC FR, 230/460 Vac, TEFC, 3 PH, Rigid Base, General Purpose Motor. Engineering Data Output HP:5 Hp Output KW:3.7 kW Frequency:60/50 Hz Voltage:230/460 V Current:12.0/6.0 A Speed:3495 rpm Service Factor:1.25 Phase:3 Efficiency:88.5 % Power Factor:89.5 Duty:Continuous Insulation Class:F Design Code:B KVA Code:J Frame:184TC Enclosure:Totally Enclosed Fan Cooled Thermal Protection:No Ambient Temperature:40 °C Drive End Bearing Size:6206 Opp Drive End Bearing Size:6205 UL:Recognized CSA:Y CE:YIP Code:43 Technical Specifications Electrical Type:Squirrel Cage Induction Run Starting Method:Across The Line Poles:2 Rotation:Reversible Resistance Main:2.32 Ohms Mounting:Rigid Base Motor Orientation:Horizontal Drive End Bearing:Ball Opp Drive End Bearing:Ball Frame Material:Aluminum Shaft Type:T Overall Length:14.97 in Frame Length:9.50 in Shaft Diameter:1.125 in Shaft Extension:2.75 in Assembly/Box Mounting:F1/F2 CAPABLE
