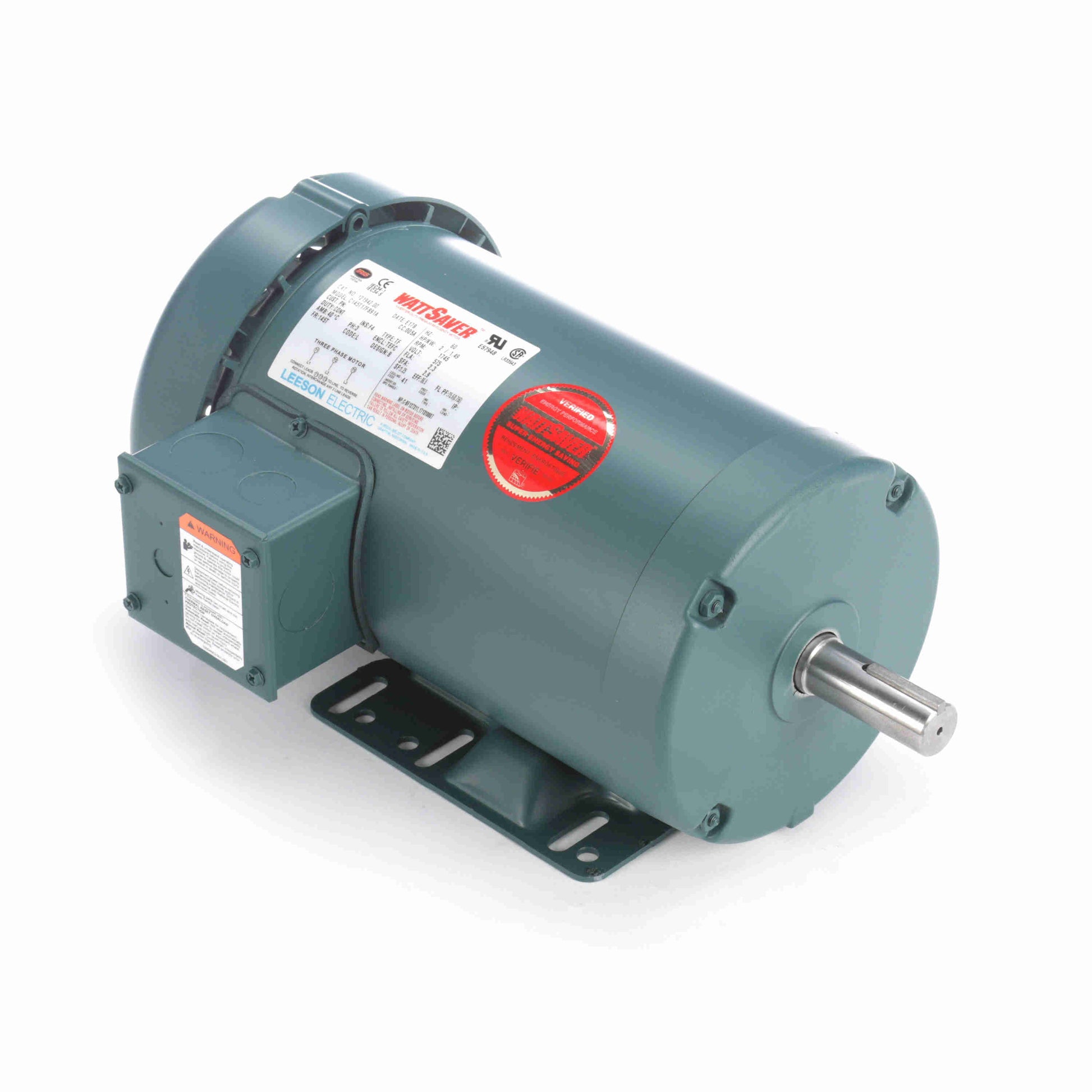

Leeson Electric LM33573, 3 HP, 1800 RPM ,182TC FR, 230/460 Vac, 3 PH, TEFC, General Purpose Motor.

LM33573, 3 HP, 1800 RPM ,182TC FR, 230/460 Vac, 3 PH, TEFC, General Purpose Motor.

Engineering Data

Output HP:3 Hp
Output KW:2.2 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:7.8/3.9 A
Speed:1770 rpm
Service Factor:1.25
Phase:3
Efficiency:89.5 %
Power Factor:80.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:K
Frame:182TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:Y
IP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:6.08 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Aluminum
Shaft Type:T
Overall Length:14.96 in
Frame Length:9.50 in
Shaft Diameter:1.125 in
Shaft Extension:2.62 in
Assembly/Box Mounting:F1/F2 CAPABLE
