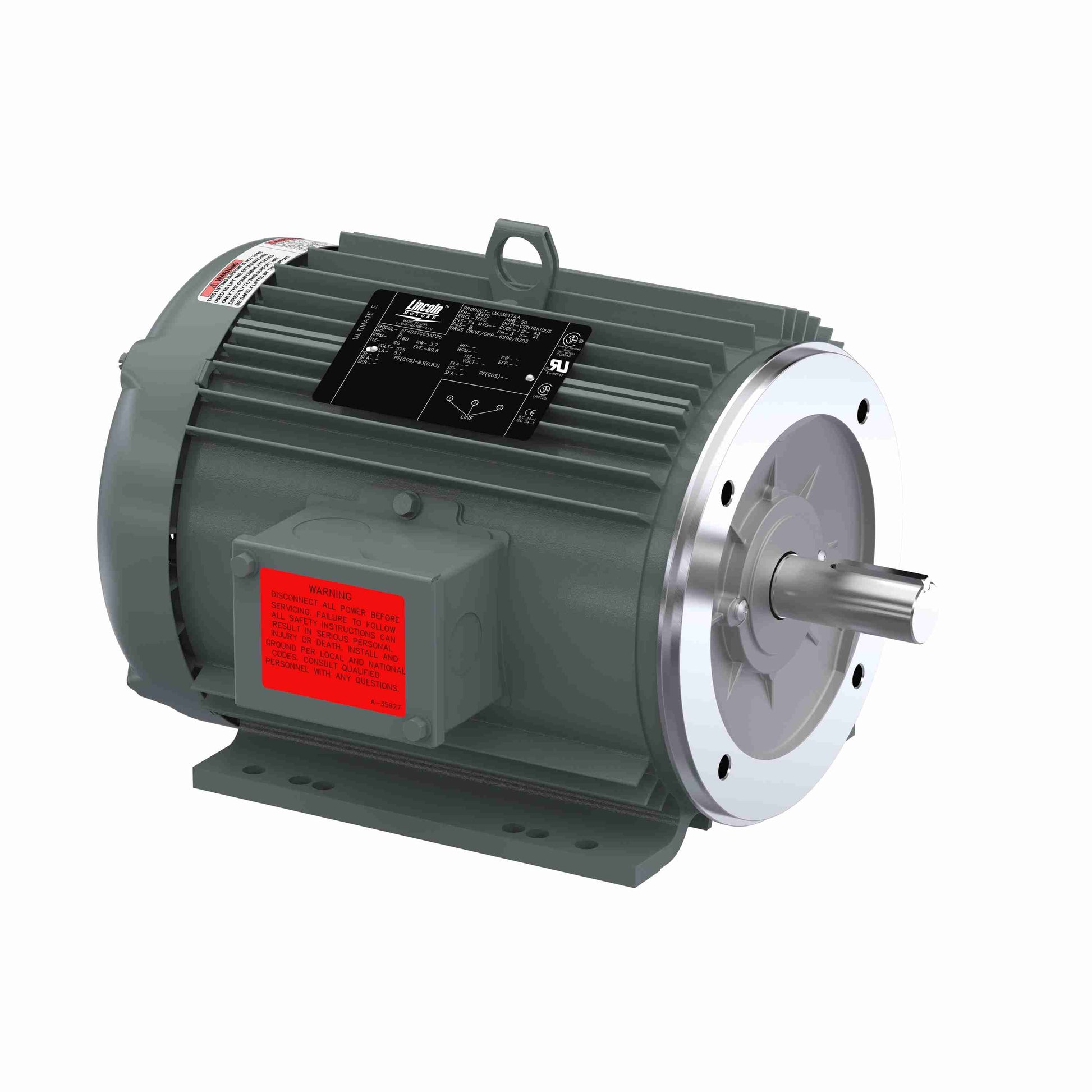

Leeson Electric LM33617, 5 HP, 1800 RPM, 184TC FR, 575 Vac, 3 PH, TEFC, Rigid Base, General Purpose

LM33617, 5 HP, 1800 RPM, 184TC FR, 575 Vac, 3 PH, TEFC, Rigid Base, General Purpose

Engineering Data

Output HP:5 Hp
Output KW:3.7 kW
Frequency:60 Hz
Voltage:575 V
Current:5.1 A
Speed:1760 rpm
Service Factor:1
Phase:3
Efficiency:89.8 %
Power Factor:83
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:J
Frame:184TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:50 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:Y
IP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Reversible
Resistance Main:2.68 Ohms
Mounting:Rigid base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Aluminum
Shaft Type:T
Overall Length:14.97 in
Frame Length:9.50 in
Shaft Diameter:1.125 in
Shaft Extension:2.91 in
Assembly/Box Mounting:F1/F2 CAPABLE
