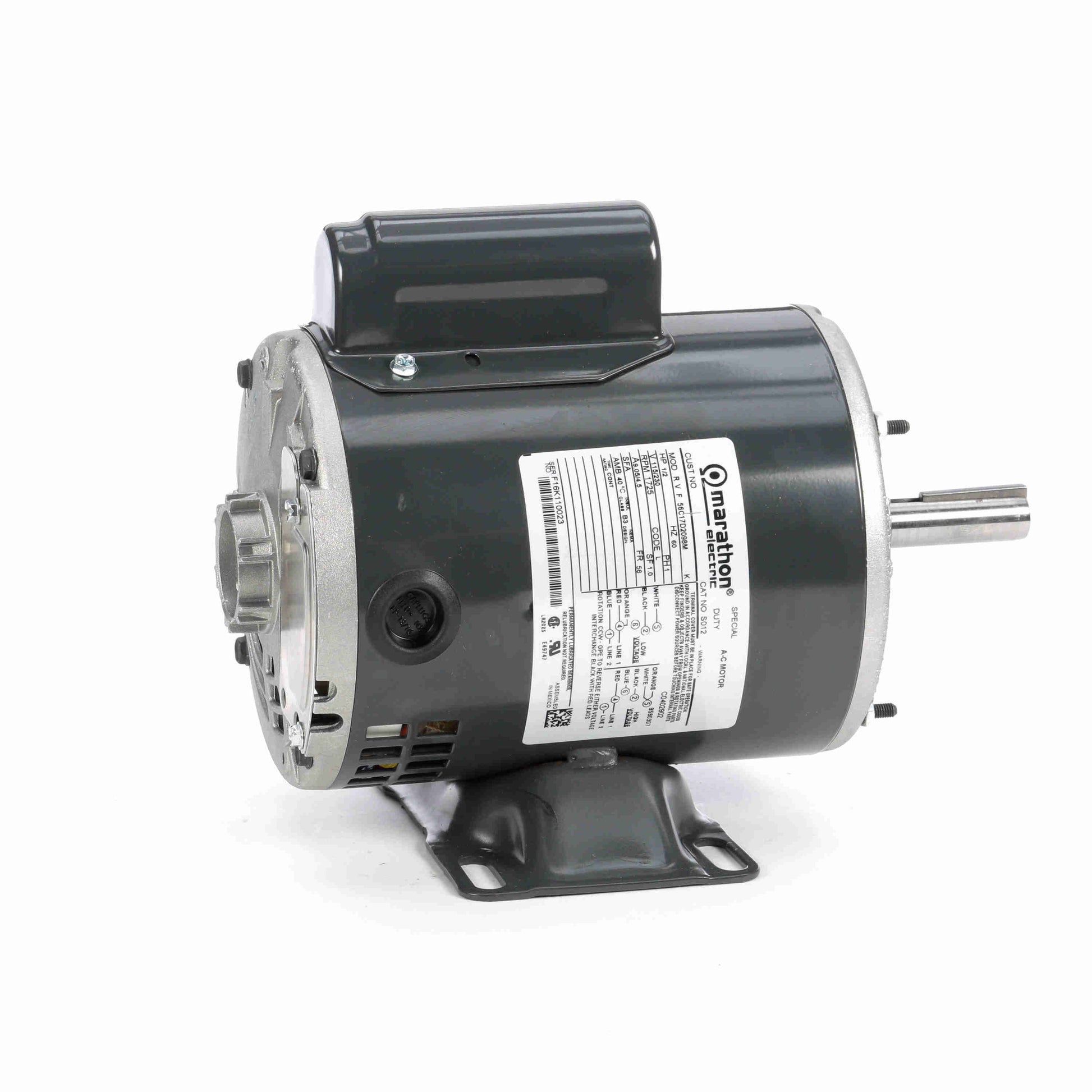

Marathon Electric 4386, 5KH39QN9218, 1/2 Hp, 1800 Rpm, 56 FR, 115 V, 1 PH, Dripproof, Resilient Base, Fan and Blower Motor

Marathon Electric 4386, 5KH39QN9218, 1/2 Hp, 1800 Rpm, 56 FR, 115 V, 1 PH, Dripproof, Resilient Base, Fan and Blower Motor

General Specifications

Model : 5KH39QN9218
Catalog No : 4386
Part Description : 1/2,1725,DP,56,1/60/115
Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : .5 Hp
Output KW : .37 kW
Frequency : 60 Hz
Voltage : 115 V
Current : 8.3 A
Speed : 1725 rpm
Service Factor : 1
Phases : 1
Efficiency : 0 %
Duty : CONT
Insulation Class : B
KVA Code : P
Frame : 56
Enclosure : DP
Overload Protector : N/R
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : N

Technical Specifications

Electrical Type : Split Phase
Starting Method : SM
Poles : 4 Rotation : CCW/CW
Mounting : RB Motor
Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Length : 6.22 in
Shaft Extension : .625 X 1.88 - .188 X .188 KEY in
