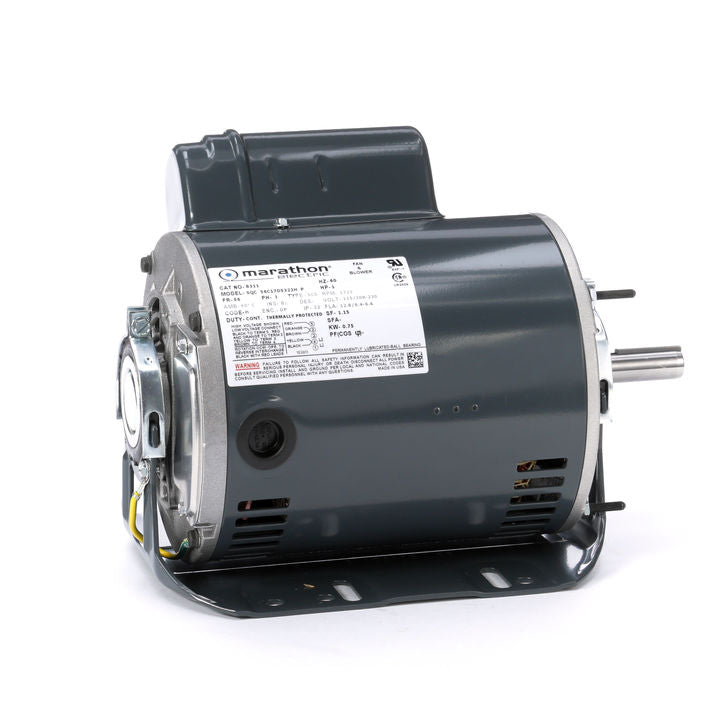

Marathon Electric B330, 056C17D5316, 1 1/2 Hp, 1725 RPM, 56H FR, 115/208-230 V, 1 PH, Dripproof , Resilient Base, Fan and Blower-Capacitor Start Motor

**This motor has been replaced by Model# C1160**
B330, 056C17D5316, 1 1/2 Hp, 1725 RPM, 56H FR, 115/208-230 V, 1 PH, Dripproof , Resilient Base, Fan and Blower-Capacitor Start Motor

General Specifications

Model : 056C17D5316
Catalog No : B330
Part Description : (USE 5KCR49SN0150X) 1-1/2,1725,DP,56H,1/60/115/208-230
Category : Fan and Blower
Stock : No

Nameplate Specifications

Output HP : 1.5 Hp
Output KW : 1.12 kW
Frequency : 60 Hz
Voltage : 115/208-230 V
Current : 18/9.3-9 A
Speed : 1725 rpm
Service Factor : 1.15
Phases : 1
Efficiency : 77 %
Duty : CONTINUOUS
Insulation Class : B
Design Code : NO DESIGN CODE
KVA Code : J
Frame : 56H
Enclosure : DP
Overload Protector : AUTOMATIC
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized ( Not Protector)
CSA : Y
CE : N
IP Code : 22

Technical Specifications

Electrical Type : CAP START IND RUN
Starting Method : ACROSS THE LINE
Poles : 4
Rotation : SELECTIVE CCW
Mounting : RESILIENT BASE-EXTENDED STUDS
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : STANDARD 56
Overall Length : 12.85 in
Frame Length : 8.56 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.91 in
Assembly/Box Mounting : F1 ONLY
