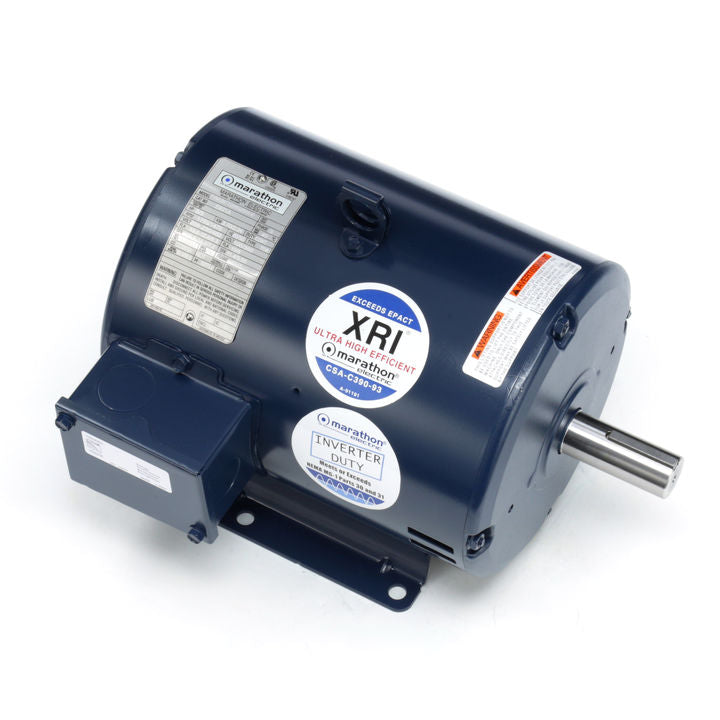

Marathon Electric E719A, 184TTDB6026, 5 Hp, 1800 Rpm, 184T FR, 230/460 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No over load, EPAct Effiencies

Marathon Electric E719A, 184TTDB6026, 5 Hp, 1800 Rpm, 184T FR, 230/460 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No over load, EPAct Effiencies

$1,274.00
$1,274.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,274.00 $1,210.30
Sale
Featured Products is no longer manufacturing this motor, possible replacement is the following Featured Products part# GT0013A

**This motor is replaced by Model# GT0013A**
E719A, 184TTDB6026, 5 Hp, 1800 Rpm, 184T FR, 230/460 Vac, 3 PH, Dripproof, Rigid Base, General Purpose, No over load, EPAct Effiencies

Engineering Data

60 Hertz
HP 5 Voltage 230/460
kW 3.7 FL Amps 12.6/6.3
RPM 1800
FL Eff 89.5 % SF 1.15
50 Hertz
HP 3 Voltage 190/380
kW 2.24 FL Amps 10/5
RPM 1500
FL Eff 88.5 % SF 1.15

Phase 3 Insulation Class F
Frame 184T
Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting Rigid NEMA Design B
Orientation HORIZONTAL
Starting Type ACROSS THE LINE
Assembly F1 ONLY
KVA Code J
Drive End Bearing BALL
IP Code 22
Opposite End Bearing BALL
Drive End Bearing Size 6206
Opposite End Bearing Size 6205
Weight 80 LB lbs
CE Y CSA Y
UL Recognized Construction
