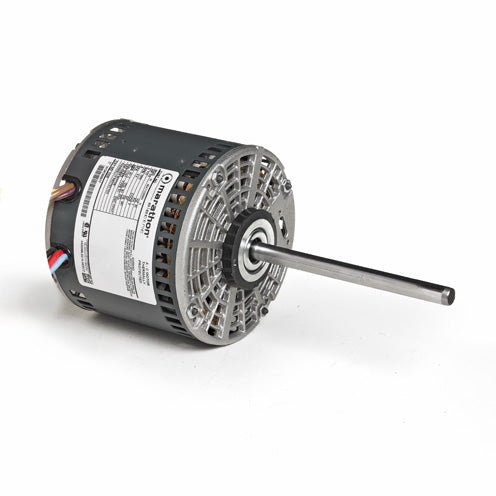

Marathon Electric X264, 1/4 Hp, 1075 Rpm, 48Y FR, 460V, Refrigeration Fan, PSC, Open Air Over, Resilient Ring Thru-Bolt Mount, 48A11O11040.

X264, 1/4 Hp, 1075 Rpm, 48Y FR, 460V, Refrigeration Fan, PSC, Open Air Over, Resilient Ring Thru-Bolt Mount, 48A11O11040.

Engineering Data

Output HP:0.25 Hp
Output KW:0.19 kW
Frequency:60 Hz
Voltage:460 V
Current:0.80 A
Speed:1075 rpm
Service Factor:1
Phase:1
Efficiency:57.5 %
Power Factor:90.5
Duty:Continous
Insulation Class:B
Design Code:NO DESIGN CODE
KVA Code:D
Frame:48
Enclosure:Open Air Over
Thermal Protection:Automatic Lock Rotor Only
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:NIP Code:01
Technical Specifications
Electrical Type:Permanent Split Capacitor
Starting Method:Across The Line
Poles:6
Rotation:Fixed Counterclockwise
Mounting:Round Belly Band
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:8.31 in
Shaft Diameter:0.500 in
Shaft Extension:1.5 in
Assembly/Box Mounting:F1 ONLY
