Industrial Motors

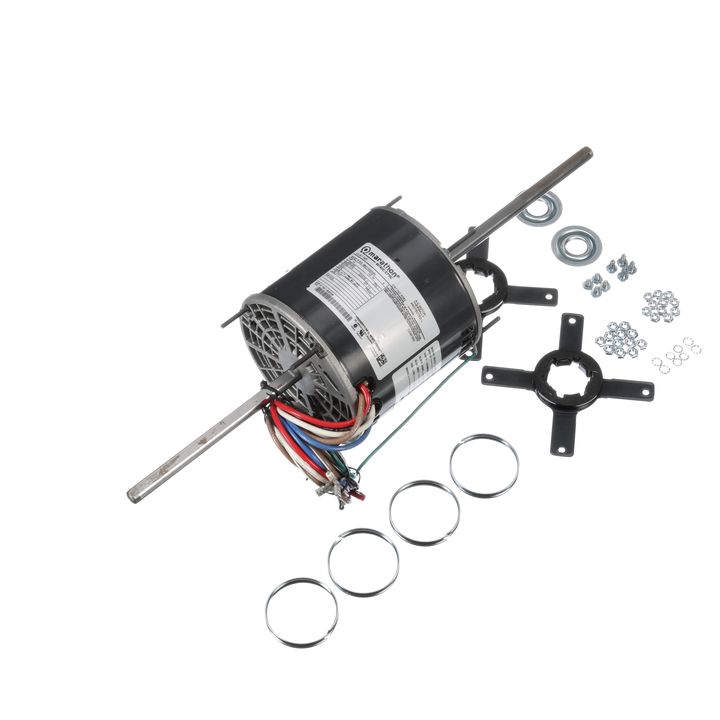

Marathon Electric X069, 48A17O2004, 1/2 Hp, 1625/3 Rpm, 48Y FR, 208-230 Vac, 1 PH, OAO, Mounting Extended Studs - Footless

Marathon Electric X069, 48A17O2004, 1/2 Hp, 1625/3 Rpm, 48Y FR, 208-230 Vac, 1 PH, OAO, Mounting Extended Studs - Footless

$457.00
$457.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$457.00 $434.15
Sale
Featured Products is no longer manufacturing this motor, possible replacement is the following Featured Products part# X058

**This motor is a built to order motor, 4-6 weeks delivery, please look at Model# X058 as a replacement**
X069, 48A17O2004, 1/2 Hp, 1625/3 Rpm, 48Y FR, 208-230 Vac, 1 PH, OAO, Mounting Extended Studs - Footless

Engineering Data

60 Hertz
HP 1/2 Voltage 208-230
kW 0.37 FL Amps 4.1
RPM 1625
FL Eff N/A % SF 1.0

Phase 1 Insulation Class B
Frame 48Y Duty CONTINUOUSAOM
Enclosure OPAO Ambient 40
Mounting Extended Studs - Footless NEMA Design NO DESIGN CODE
Orientation HORIZONTAL Starting Type PSC 3 SPEED
Assembly F1 ONLY KVA Code D
Drive End Bearing BALL IP Code 10
Opposite End Bearing BALL
Drive End Bearing Size 6203 Rotation FIXED CCW
Opposite End Bearing Size 6203
Weight 16 LB lbs
CE N CSA Y
UL Recognized Construction and Protector
Thermal Protection Automatic Protector (under locked rotor only)
