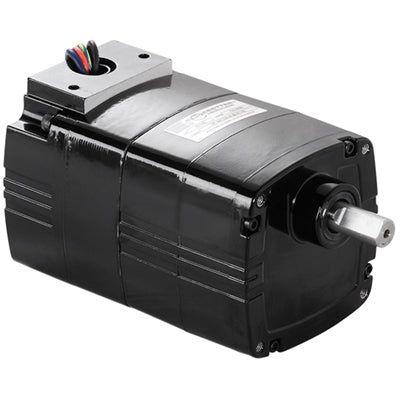

Bodine Electric 2216, 1/17 Hp, 142 Rpm, 12:1, 19 Lb-in., 30R4BEPP-D4, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric 2216, 1/17 Hp, 142 Rpm, 12:1, 19 Lb-in., 30R4BEPP-D4, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

$494.53
$494.53
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2216, 1/17 Hp, 142 Rpm, 12:1, 19 Lb-in., 30R4BEPP-D4, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor.

Specifications

Speed (rpm) 142
Fixed Speed Torque 19 Lb-in
Motor Output Power (hp) 1/17
Voltage (AC) 230
Current (amps) 0.48
Rated Frequency (Hz) 60
Gear Ratio 12
Variable Speed (rpm) 19-175
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 19
SOA Torque At 60Hz 19
SOA Torque At Max Hz 19
Length XH (inches) 6
Weight (lbs) 7.5
Connection Diagram 07410881
Motor Type 30R4BEPP-D3
HPDecimal 0.0588
