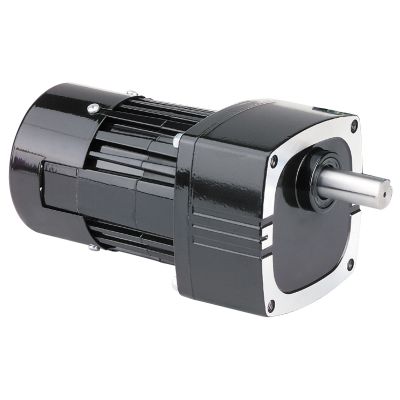

Bodine Electric 2253, 1/6 Hp, 57 Rpm, 30:1, 160 Lb-in, 34R4BFPP-FX3, 230 Vac, Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric 2253, 1/6 Hp, 57 Rpm, 30:1, 160 Lb-in, 34R4BFPP-FX3, 230 Vac, Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

$622.42
$622.42
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2253, 1/6 Hp, 57 Rpm, 30:1, 160 Lb-in, 34R4BFPP-FX3, 230 Vac, Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor.

Specifications

Speed (rpm) 57
Fixed Speed Torque 160 Lb-in
Motor Output Power (hp) 1/6
Voltage (AC) 230
Current (amps) 1.0
Rated Frequency (Hz) 60
Gear Ratio 30
Variable Speed (rpm) 4.0-73
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 128
SOA Torque At 60Hz 255
SOA Torque At Max Hz 221
Length XH (inches) 8.8
Weight (lbs) 11
Connection Diagram 07410007
Motor Type 34R4BFPP-FX3
HPDecimal 0.1667
