Industrial Motors

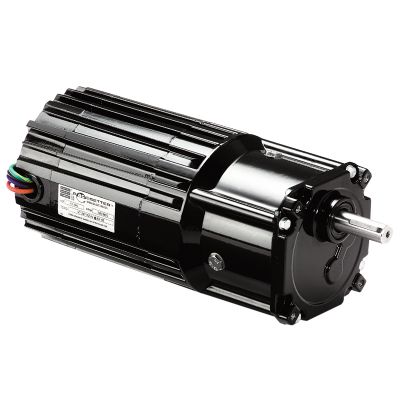

Bodine Electric 2227, 1/6 Hp, 94 Rpm, 18:1, 39 Lb-in., 34R6BEPP-Z2, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric 2227, 1/6 Hp, 94 Rpm, 18:1, 39 Lb-in., 34R6BEPP-Z2, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

$525.79
$525.79
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2227, 1/6 Hp, 94 Rpm, 18:1, 39 Lb-in., 34R6BEPP-Z2, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor.

Specifications

Speed (rpm) 94
Fixed Speed Torque 39 Lb-in
Motor Output Power (hp) 1/6
Voltage (AC) 230
Current (amps) 0.73
Rated Frequency (Hz) 60
Gear Ratio 18
Variable Speed (rpm) 16-143
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 39
SOA Torque At 60Hz 39
SOA Torque At Max Hz 39
Length XH (inches) 7.5
Weight (lbs) 10.5
Connection Diagram 07410881
Motor Type 34R6BEPP-Z2
HPDecimal 0.1667
