Industrial Motors

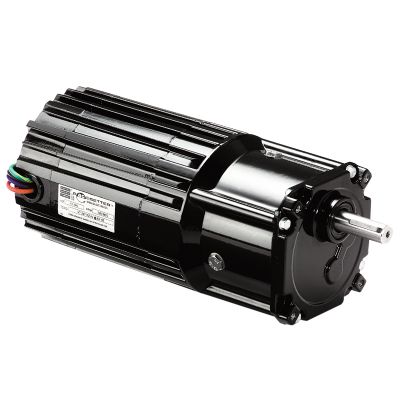

Bodine Electric 2226, 1/6 Hp, 57 Rpm, 30:1, 96 Lb-in., 34R6BEPP-Z3, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric 2226, 1/6 Hp, 57 Rpm, 30:1, 96 Lb-in., 34R6BEPP-Z3, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor

$552.79
$552.79
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric, 2226, 1/6 Hp, 57 Rpm, 30:1, 96 Lb-in., 34R6BEPP-Z3, 230 Vac., Parallel Shaft, AC Pacesetter Inverter Duty Gear Motor.

Specifications

Speed (rpm) 57
Fixed Speed Torque 96 Lb-in
Motor Output Power (hp) 1/6
Voltage (AC) 230
Current (amps) 0.73
Rated Frequency (Hz) 60
Gear Ratio 30
Variable Speed (rpm) 5.5-78
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 96
SOA Torque At 60Hz 96
SOA Torque At Max Hz 96
Length XH (inches) 8.4
Weight (lbs) 10.5
Connection Diagram 07410007
Motor Type 34R6BEPP-Z3
HPDecimal 0.1667
